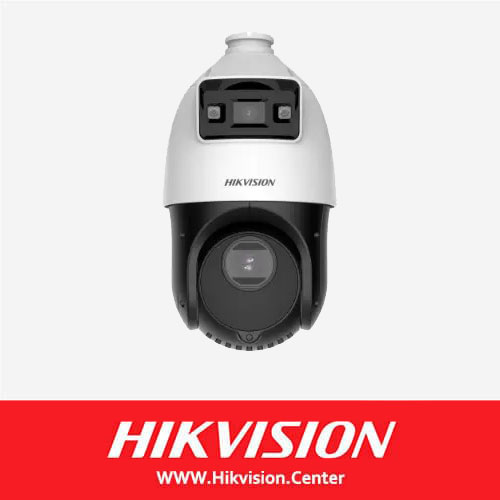

دوربین هایک ویژن مدل DS-2SE4C225MWG-E از انواع دوربین‌های اسپیددام یا PTZ این برند محبوب است. با استفاده از قابلیت (WDR (120db هایک ویژن تصاویر را در شرایط نوری خاص بهبود می‌بخشد. WDR اختلاف سطح نور را در محیط‌های با کنتراست بالا را برطرف می‌کند. در محیط هایی که نور مستقیماً به لنز دوربین می‌تابد از تاریک شدن تصویر جلوگیری می‌کند. این دوربین دارای قابلیت‌های دیگری نظیر قابلیت ضدمه و گرد و غبار هایک ویژن (defog)، قابلیت 3D DNR (کاهش نویز دیجیتالی سه بعدی)، فشرده سازی H.265+/H.265 و … است.
از خصوصیات دیگر دوربین هایک ویژن مدل DS-2SE4C225MWG-E امکان نصب کارت حافظه یا SD کارت است. این کارت حافظه با حداکثر ظرفیت 256 گیگ در این دوربین اسپیددام هایک ویژن پشتیبانی می‌شود. دوربین 2 مگاپیکسل PTZ هایک ویژن علاوه بر زوم اپتیکال، قابلیت زوم دیجیتال به اندازه 16x را نیز داراست. برای بهبود تصاویر قابلیت‌های BLC و HLC نیز در این دوربین گردان وجود دارد.
مشاهده Datasheet این محصول:
مشاهده مشخصات فنی محصول
Camera
- Image Sensor[Bullet channel]: 1/2.8″ Progressive Scan CMOS; [PTZ channel]: 1/2.8″ progressive scan CMOS
- Min. Illumination
[Bullet channel]: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light;
[PTZ channel]: Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0.001 Lux @ (F1.6, AGC ON), 0 Lux with IR
- Shutter Speed1 s to 1/30,000 s
- Slow Shutteryes
- Focussemi-auto;manual;auto
- Day & NightICR
- Zoom[PTZ channel] 25 × optical, 16 × digital
- Day/Night Switchday, night, auto, scheduled-switch
- White BalanceMWB;indoor;outdoor;fluorescent lamp;sodium lamp;ATW;auto;Locked WB
- Max. Resolution[Bullet channel] 1920 × 1080, [PTZ channel] 1920 × 1080
Lens
- Focal Length[Bullet channel]: 2.8 mm; [PTZ channel]: 4.8 to 120 mm, 25 × optical
- Zoom Speed[PTZ channel]: approx. 3.6 s
- FOV
[Bullet channel]: Horizontal field of view: 106.1°, Vertical field of view: 56.8°，Diagonal field of view: 126.5°;
[PTZ channel]:
Horizontal field of view: 54.8° to 2.8° (wide-tele),
Vertical field of view: 31.4° to 1.5° (wide-tele),
Diagonal field of view: 62.2° to 3.2° (wide-tele)
- Aperture[Bullet channel]: F1.0; [PTZ channel]: F1.6
Illuminator
- Supplement Light Type[PTZ channel]: IR; [Bullet channel]: White Light
- Smart Supplement LightYes
- Supplement Light Range[PTZ channel]: up to 100 m; [Bullet channel]: up to 30 m
PTZ
PTZ
- Movement Range (Pan)360°
- Movement Range (Tilt)-15° to 90° (auto flip)
- Pan Speedpan speed: configurable from 0.1° to 80°/s; preset speed: 80°/s
- Tilt Speedtilt speed: configurable from 0.1° to 80°/s, preset speed 80°/s
- Proportional Zoomyes
- Presets300
- Patrol Scan8 patrols, up to 32 presets for each patrol
- Pattern Scan4 pattern scans
- Power-Off Memoryyes
- Park Actionpreset;patrol scan;pattern scan;auto scan;tilt scan;random scan;frame scan;panorama scan
- 3D Positioningyes
- PTZ Status Displayyes
- Preset Freezingyes
- Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
- Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected, Abnormal Reboot
Video
Video
- Region Of Interest (ROI)8 fixed regions for each stream
- Stream Typemain stream;sub-stream;third stream
- Main Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Sub-Stream
[Bullet channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
- Third Stream
[Bullet channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
[PTZ channel]:
50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288)
60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
- Video CompressionH.265;H.264;MJPEG
- Video Bit Rate32 kbps to 16384 kbps
- H.264 Typebaseline profile;main profile;high profile
- H.265 Typemain profile
- H.264+yes
- H.265+yes
- SVCyes
Audio
Audio
- Audio CompressionG.711,G.722.1,G.726,MP2L2,PCM,AAC-LC
- Audio Bit Rate32 to 192 Kbps (MP2L2),16 to 64Kbps (AAC-LC)
- Audio Sampling Rate8 kHz,16 kHz,32 kHz,48 kHz
- Environment Noise Filteringyes
- Smart Features
- Smart RecordANR;Dual-VCA
Network
- APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
- Network StorageNAS (NFS, SMB/ CIFS); ANR
- ProtocolsIPv4/IPv6;HTTP;HTTPS;802.1x;Qos;FTP;SMTP;UPnP;SNMP;DNS;DDNS;NTP;RTSP;RTCP;RTP;TCP/IP;UDP;IGMP;ICMP;DHCP;PPPoE;Bonjour;WebSocket;WebSockets
- Simultaneous Live View20
- User/Host32
- Security MeasuresAuthenticated username and password;MAC address binding;HTTPS encryption;802.1X authenticated access;IP address filter
- ClientiVMS-4200;Hik-Connect
- Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+
- Image Settingssharpness, saturation, brightness, contrast
- Wide Dynamic Range (WDR)120 dB
- SNR≥ 52 dB
- DefogDigital defog
- Image StabilizationEIS
- Image EnhancementBLC,HLC,3D DNR
- Regional FocusYes
- Regional ExposureYes
- Image Parameters SwitchYes
- Privacy Mask[Bullet channel] 8 programmable polygon privacy masks, [PTZ channel] 24 programmable polygon privacy masks; mask color or mosaic configurable
Interface
Interface
- Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
- On-Board StorageBuilt-in memory card slot, support Micro SD/Micro SDHC/Micro SDXC, up to 256 GB
- Alarm Input1 alarm input
- Alarm Output1 alarm output
- Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
- Audio Output1 audio output, line level, impedance: 600 Ω
Event
- Basic EventMotion detection,video tampering alarm,exception,alarm input and output
- Smart Eventaudio exception detection,region entrance detection,region exiting detection,intrusion detection,Line crossing detection
- Linkage[Bullet channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, and trigger recording, [PTZ channel] Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, and PTZ actions (such as preset, patrol scan, pattern scan)
- Deep Learning Function
- Face Capture[Bullet channel] no,[PTZ channel] yes
General
- General Functionmirror,password protection,watermark,IP address filter
- Power12VDC, PoE+
- Power Consumption And CurrentMax. 24 W, including max. 2.6 W for heater and max. 11 W for supplement light
- Operating Conditions-30℃ to 65℃ (-22°F to 149°F) ;humidity lower than 90%RH
- Resetyes
- DemistDemist by heating the glass
- MaterialADC12
- DimensionsØ 166 mm × 375 mm (Ø 6.5″ × 14.7″)
- WeightApprox. 2.4 kg (13.2 lb.)
Approval
- ProtectionIP66 Standard, 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
