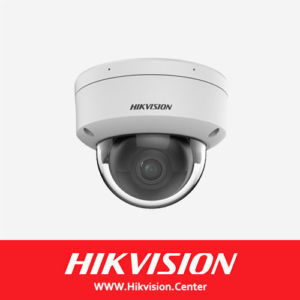

دوربین 4 مگاپیکسلی هایک ویژن DS-2CD3143G2-ISU یک گزینه عالی برای محیط‌های داخلی است. جنس بدنه دوربین دام هایک ویژن در این مدل از فلز و با استاندارد IP67 بوده که همین امر موجب شده است به راحتی بتوانید آن را در محیط‌های بیرونی نیز نصب کنید. نظارت صوتی بر محیط نیز از امکانات این دوربین است که مجهز به میکروفنداخلی بوده و شما را از خرید میکروفن به طور مجزا بی‌نیاز می‌کند. ضمن اینکه برای ذخیره تصاویر شما حافظه پشتیبان SD را روی این دوربین نیز می‌توانید داشته باشید. تا حداکثر ظرفیت 512 گیگابایت کارت حافظه‌ایست که می‌توانید روی دوربین نصب کنید. همچنین این مدل از دوربین Hikvision از فناوری PoE نیز پشتیبانی می‌کند. قبل از خرید حتماً با نمایندگی هایک ویژن برای استعلام موجودی و دریافت تخفیف تماس بگیرید.
مشاهده مشخصات فنی محصول
Camera
Image Sensor
1/3″ Progressive Scan CMOS
Max. Resolution
2688 × 1520
Min. Illumination
Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time
1/3 s to 1/100, 000 s
Day & Night
IR cut filter
Angle Adjustment
Pan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
Lens Type
Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV
2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100° 6 mm, horizontal FOV 52°, vertical FOV 28°, diagonal FOV 61°
DORI
2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m 6 mm: D: 120 m, O: 47 m, R: 24 m, I: 12m
Illuminator
Supplement Light Range
Up to 40 m
Smart Supplement Light
Yes
Main Stream
50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream
50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream
50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
Video Compression
Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate
32 Kbps to 8 Mbps
H.264 Type
Baseline Profile/Main Profile/High Profile
Scalable Video Coding (SVC)
H.264 and H.265 encoding
Region of Interest (ROI)
5 fixed regions for main stream and sub-stream
Audio
Compression
G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate
64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate
8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering
Yes
Protocols
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View
Up to 6 channels
API
Open Network Video Interface (Profile S, Profile G), ISAPI, SDK, ISUP
User/Host
Up to 32 users. 3 user levels: administrator, operator and user
Security
Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network Storage
NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client
iVMS-4200, Hik-Connect, Hik-Central
Web Browser
Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Settings
Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night Switch
Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)
120 dB
Image Enhancement
BLC, HLC, 3D DNR
Ethernet Interface
1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage
Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Audio
-S: 1 input (line in), max. input amplitude: 3.3 vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium; 1 output (line out), max. output amplitude: 3.3 vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm
-S: 1 input, 1 output (max. 12 VDC, 30 mA)
Basic Event
Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Linkage
Upload to FTP/NAS/memory card, notify surveillance center, trigger recording, trigger capture, send email, trigger alarm output (-S model), audible warning (-S model)
Smart Event
unattended baggage detection,object removal detection
Deep Learning Function
Perimeter Protection
Line crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)
General
Power
-IU: 12 VDC ± 25%, reverse polarity protection, 0.4 A, max. 5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, 36 V to 57 V, Class 3, 0.20 A to 0.15 A, max. 6.5 W -ISU: 12 VDC ± 25%, reverse polarity protection, 0.45 A, max. 5.5 W, Ø5.5 mm coaxial power plug PoE: IEEE 802.3af, 36 V to 57 V, Class 3, 0.20 A to 0.10 A, max. 6.5 W
Material
Aluminum alloy body Bubble: plastic
Dimension
Ø121.4 mm × 92.2 mm (Ø4.8″ × 3.7″)
Package Dimension
150 mm × 150 mm × 141 mm (5.9″ × 5.9″ × 5.6″)
Weight
Approx. 570 g (1.3 lb.)
With Package Weight
Approx. 806 g (1.8 lb.)
Storage Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions
-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
General Function
Anti-banding, heartbeat, password reset via email, pixel counter, mirror
Language
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
EMC
FCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
Safety
UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Environment
CE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
Protection
IP67 (IEC 60529-2013), IK10 (IEC 62262: 2002)
