Image Sensor 1/3’’ Progressive Scan CMOS
Min. Illumination 0.01Lux @(F1.2,AGC ON), 0.014 Lux @(F1.4,AGC ON), 0 Lux with IR
Shutter Speed 1/3 s ~ 1/10,000 s
Slow Shutter Support
Lens 2.8 – 12 mm @ F1.4, motorized lens (-Z)
Angle Adjustment Pan:0° – 355°, Tilt: 0° – 75°, Rotation: 0° – 355°
Lens Mount Φ14
Day & Night IR cut filter with auto switch
WDR 120dB
Compression
Standard Video Compression H.264/MJPEG/H.264+
H.264 Type Main Profile
Video Bit Rate 32 Kbps – 16 Mbps
Audio (-S) G.711/G.722.1/G.726/MP2L2, 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2)
Max. Resolution 2688×1520
Frame Rate
50Hz: 20fps (2688×1520), 25fps(1920×1080), 25fps(1280×720)
60Hz: 20fps (2688×1520), 30fps (1920×1080), 30fps(1280×720)
Enhancement BLC/3D DNR/ROI
Image Setting Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser
Day/Night Switch Auto/Schedule/Triggered by Alarm In
Network

NetworkS

Network Storage NAS (Support NFS,SMB/CIFS); ANR, Built-in Micro SD/SDHC/SDXC card slot, up to 128 GB
Alarm Trigger Intrusion Detection, Line Crossing detection, Motion detection, Dynamic Analysis, Tampering alarm, Network disconnect, IP
address conflict, Storage exception
Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X,
QoS, IPv6, Bonjour
Security
One-key reset, flash-prevention, dual stream, heartbeat, mirror, password protection, privacy mask, watermark, IP address
filtering, anonymous access
Standard ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI
General
Interface 1 RJ45 10M/100M Ethernet interface
Operating Conditions -30 °C – 60 °C (-22 °F – 140 °F), Humidity 95% or less (non-condensing)
Power Supply 12V DC±10%, PoE (802.3af)
Power Consumption Max. 5.5 W
Ingress Protection IP66
Impact Protection IEC60068-275Eh, 20J; EN50102, up to IK10
IR Range 20~30 meters
Dimensions Φ 140 × 99.9 mm (Φ 5.51” × 3.94”)
Weight 1000g (2.20lbs)
Order Model

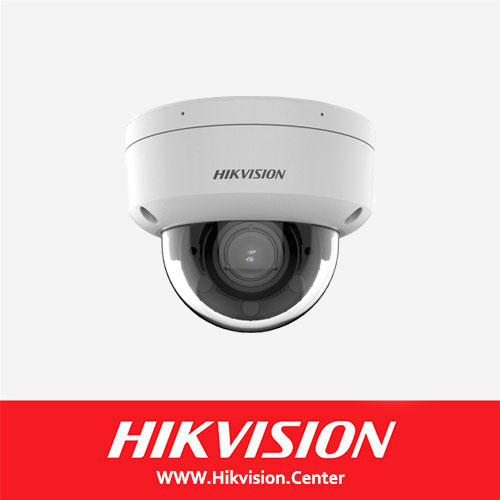

DS-2CD2742FWD-I, DS-2CD2742FWD-IS, DS-2CD2742FWD-IZ, DS-2CD2742FWD-IZS
